OZU-372

OZU-372

or
Call 1-866-609-2672

Description

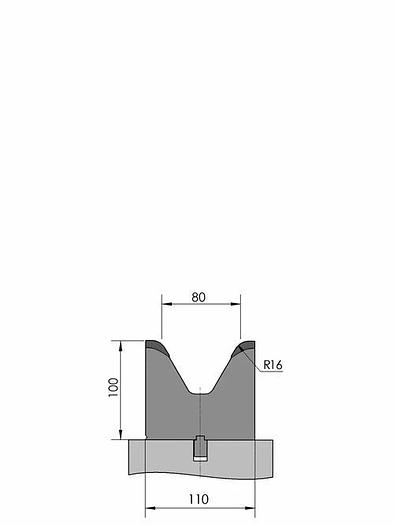

Working height = 100mm V-opening = 80mm/60° Radius = 16mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 220ton/m (α = 90°) Max. load = 220ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=80mm/60°, Bending radius=16mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=220ton/m (α=90°), Max. load=220ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-372/1 515mm, OZU-372/12 255mm, OZU-E2M-372/1 515mm, OZU-E2M-372/12 255mm
SafetyE2M®
Weight33.1kg, 16.4kg, 16.3kg
