OZU-HD-374
OZU-HD-374
or
Call 1-866-609-2672

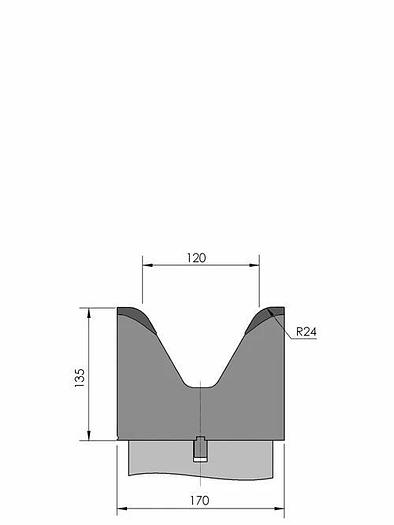

Description
Working height = 135mm
V-opening = 120mm/60°
Radius = 24mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 270ton/m (α = 90°)
New Standard Premium bottom tool Working height=135mm, V-opening=120mm/60°, Bending radius=24mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), , Max. load=270ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-HD-374/1 515mm, OZU-HD-374/12 255mm, OZU-HD-E2M-374/1 515mm, OZU-HD-E2M-374/12 255mm |
| Safety | E2M® |
| Weight | 67.6kg, 33.5kg |
