OZU-373
OZU-373
or
Call 1-866-609-2672

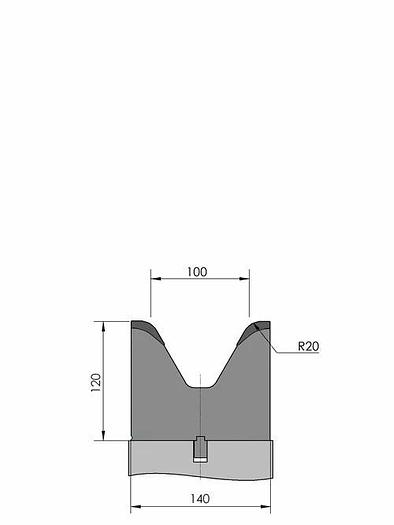

Description
Working height = 120mm
V-opening = 100mm/60°
Radius = 20mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 250ton/m (α = 90°)
Max. load = 250ton/m (α = 90°)
New Standard Premium bottom tool Working height=120mm, V-opening=100mm/60°, Bending radius=20mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=250ton/m (α=90°), Max. load=250ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-373/1 515mm, OZU-373/12 255mm, OZU-E2M-373/1 515mm, OZU-E2M-373/12 255mm |
| Safety | E2M® |
| Weight | 50.3kg, 24.9kg |
