OZU-327

OZU-327

or
Call 1-866-609-2672

Description

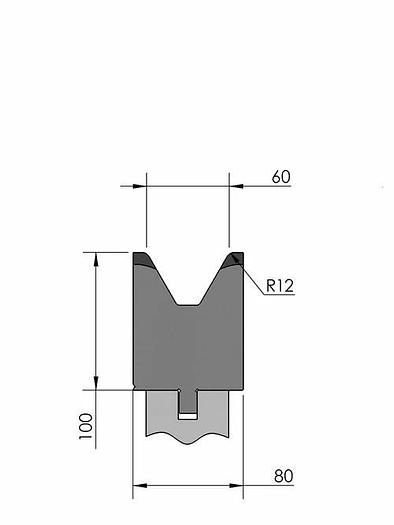

Working height = 100mm V-opening = 60mm/60° Radius = 12mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 125ton/m (α = 90°) Max. load = 125ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=60mm/60°, Bending radius=12mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-327/1 515mm, OZU-E2M-327/1 515mm, OZU-327/2 550mm (segmented), OZU-327/3 200mm (segmented), OZU-327/12 255mm, OZU-327 1x:20mm, OZU-327 1x:25mm
SafetyE2M®
Weight27.2kg, 29.0kg, 10.6kg, 13.5kg, 1.1kg, 1.3kg
