OZU-329
OZU-329
or
Call 1-866-609-2672
Description

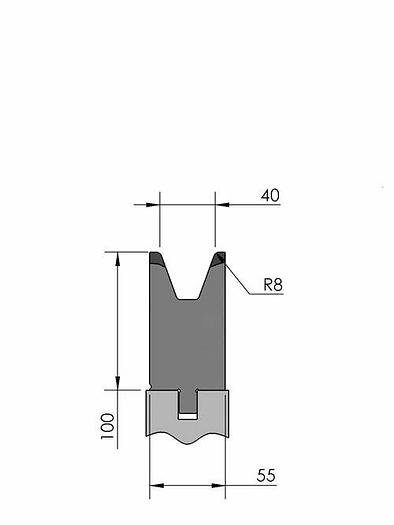

Working height = 100mm
V-opening = 40mm/40°
Radius = 8mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 125ton/m (α = 90°)
Max. load = 125ton/m (α = 90°)
New Standard Premium bottom tool Working height=100mm, V-opening=40mm/40°, Bending radius=8mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-329/1 515mm, OZU-E2M-329/1 515mm, OZU-329/2 550mm (segmented), OZU-329/3 200mm (segmented), OZU-329/12 255mm, OZU-329 1x:20mm, OZU-329 1x:25mm |
| Safety | E2M® |
| Weight | 19.3kg, 19.2kg, 20.6kg, 7.5kg, 9.5kg, 0.7kg, 0.9kg |
