OZU-031

OZU-031

or
Call 1-866-609-2672

Description

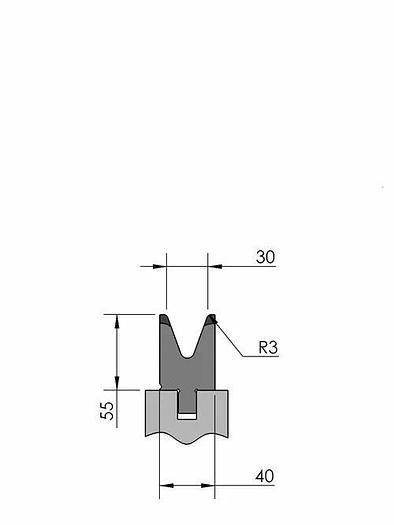

Working height = 55mm V-opening = 30mm/40° Radius = 3mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 70ton/m (α = 90°) Max. load = 70ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=30mm/40°, Bending radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=70ton/m (α=90°), Max. load=70ton/m (α=90°).
Show All

Specifications

ConditionNew
Type/lengthOZU-031/1 515mm, OZU-031/2 550mm (segmented), OZU-031/3 200mm (segmented), OZU-031/12 255mm, OZU-EB-031/1 515mm, OZU-EB-031/2 550mm (segmented), OZU-EB-031/3 200mm (segmented), OZU-EB-031/12 255mm, OZU-ZN-031/1 515mm, OZU-ZN-031/2 550mm (segmented), OZU-031 1x:20mm, OZU-031 1x:25mm
Weight7.4kg, 7.9kg, 2.9kg, 3.6kg, 0.3kg, 0.4kg
