OZU-016
OZU-016
or
Call 1-866-609-2672
Description

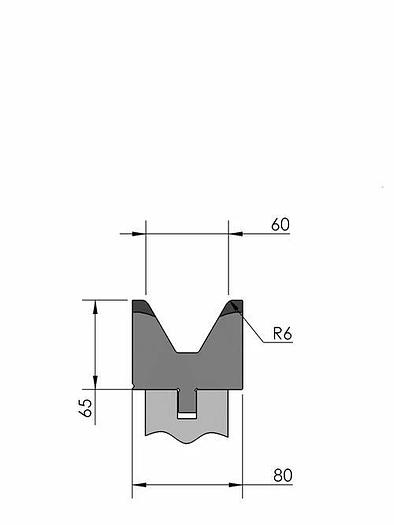

Working height = 65mm
V-opening = 60mm/60°
Radius = 6mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 125ton/m (α = 90°)
Max. load = 125ton/m (α = 90°)
New Standard Premium bottom tool Working height=65mm, V-opening=60mm/60°, Bending radius=6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-016/1 515mm, OZU-E2M-016/1 515mm, OZU-016/2 550mm (segmented), OZU-016/3 200mm (segmented), OZU-016/12 255mm, OZU-016 1x:20mm, OZU-016 1x:25mm |
| Safety | E2M® |
| Weight | 16.0kg, 17.1kg, 6.2kg, 7.9kg, 0.6kg, 0.8kg |
