OZU-328

OZU-328

Description

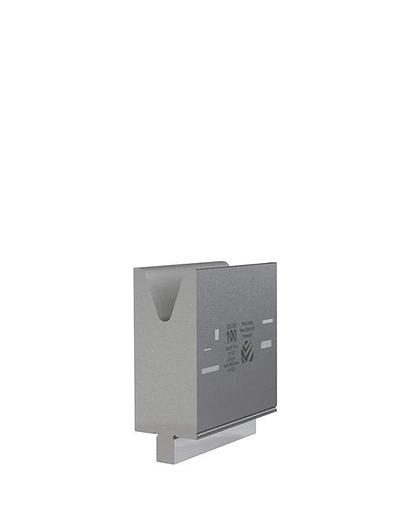

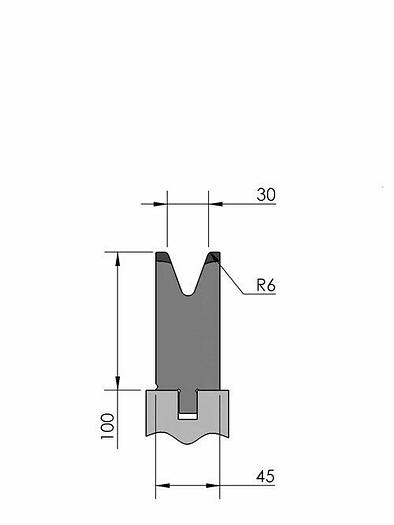

Working height = 100mm V-opening = 30mm/40° Radius = 6mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 100ton/m (α = 90°) Max. load = 100ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=30mm/40°, Bending radius=6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m (α=90°), Max. load=100ton/m (α=90°).

Specifications

ConditionNew
Type/lengthOZU-328/1 515mm, OZU-E2M-328/1 515mm, OZU-328/2 550mm (segmented), OZU-328/3 200mm (segmented), OZU-328/12 255mm, OZU-EB-328/1 515mm, OZU-EB-328/2 550mm (segmented), OZU-EB-328/3 200mm (segmented), OZU-EB-328/12 255mm, OZU-328 1x:20mm, OZU-328 1x:25mm
SafetyE2M®
Weight16.6kg, 17.0kg, 17.8kg, 6.5kg, 8.2kg, 0.6kg, 0.8kg
