OZU-354

OZU-354

or
Call 1-866-609-2672

Description

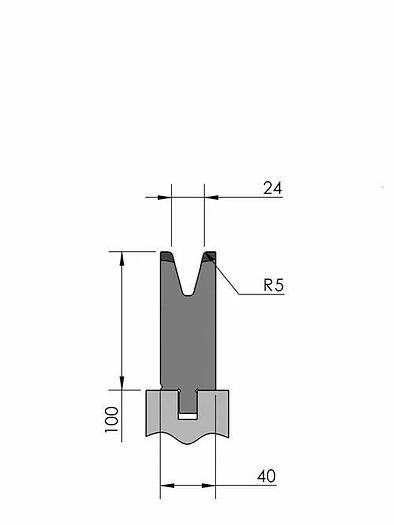

Working height = 100mm V-opening = 24mm/30° Radius = 5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 80ton/m (α = 90°) Max. load = 80ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=24mm/30°, Bending radius=5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-354/1 515mm, OZU-E2M-354/1 515mm, OZU-354/2 550mm (segmented), OZU-354/3 200mm (segmented), OZU-354/12 255mm, OZU-EB-354/1 515mm, OZU-EB-354/2 550mm (segmented), OZU-EB-354/3 200mm (segmented), OZU-EB-354/12 255mm, OZU-ZN-354/2 550mm (segmented), OZU-ZN-354/1 515mm, OZU-ZN-354/3 200mm (segmented), OZU-354 1x:20mm, OZU-354 1x:25mm
SafetyE2M®
Weight15.0kg, 16.1kg, 5.8kg, 7.4kg, 6.0kg, 0.6kg, 0.7kg
