OZU-032
OZU-032
or
Call 1-866-609-2672
Description

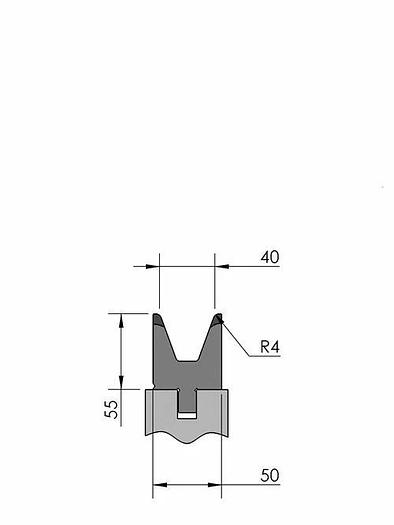

Working height = 55mm
V-opening = 40mm/40°
Radius = 4mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 80ton/m (α = 90°)
Max. load = 80ton/m (α = 90°)
New Standard Premium bottom tool Working height=55mm, V-opening=40mm/40°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-032/1 515mm, OZU-032/2 550mm (segmented), OZU-032/3 200mm (segmented), OZU-032/12 255mm, OZU-032 1x:20mm, OZU-032 1x:25mm |
| Weight | 8.2kg, 8.7kg, 3.2kg, 4.1kg, 0.3kg, 0.4kg |
