OZU-330
OZU-330
or
Call 1-866-609-2672
Description

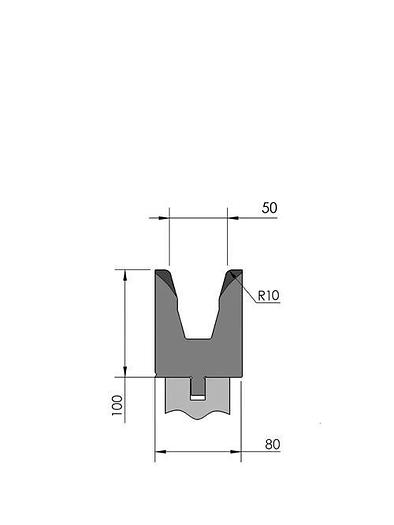

Working height = 100mm
V-opening = 50mm/30°
Radius = 10mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 150ton/m (α = 90°)
Max. load = 150ton/m (α = 90°)
New Standard Premium bottom tool Working height=100mm, V-opening=50mm/30°, Bending radius=10mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).
Specifications
| Condition | New |
| Type/length | OZU-330/1 515mm, OZU-330/2 550mm (segmented), OZU-330/3 200mm (segmented), OZU-330/12 255mm, OZU-330 1x:20mm, OZU-330 1x:25mm |
| Weight | 24.5kg, 26.2kg, 9.5kg, 12.1kg |
