OZU-363

OZU-363

or
Call 1-866-609-2672

Description

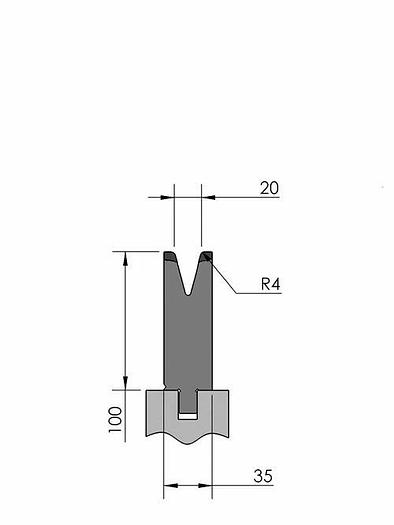

Working height = 100mm V-opening = 20mm/30° Radius = 4mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 80ton/m (α = 90°) Max. load = 80ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=20mm/30°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-363/1 515mm, OZU-E2M-363/1 515mm, OZU-363/2 550mm (segmented), OZU-363/3 200mm (segmented), OZU-363/12 255mm, OZU-EB-363/1 515mm, OZU-EB-363/2 550mm (segmented), OZU-EB-363/3 200mm (segmented), OZU-EB-363/12 255mm, OZU-ZN-363/1 515mm, OZU-ZN-363/2 550mm (segmented), OZU-ZN-363/3 200mm (segmented), OZU-363 1x:20mm
SafetyE2M®
Weight13.5kg, 14.4kg, 5.2kg, 6.7kg, 5.4kg, 0.5kg
