OZU-362

OZU-362

or
Call 1-866-609-2672

Description

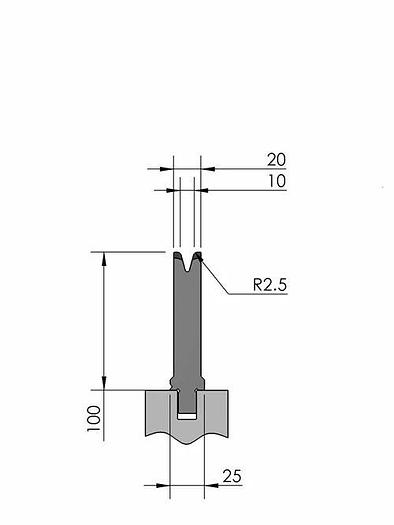

Working height = 100mm V-opening = 10mm/30° Radius = 2.5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 80ton/m (α = 90°) Max. load = 80ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=10mm/30°, Bending radius=2.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-362/1 515mm, OZU-362/2 550mm (segmented), OZU-362/3 200mm (segmented), OZU-362/12 255mm, OZU-EB-362/1 515mm, OZU-EB-362/2 550mm (segmented), OZU-EB-362/3 200mm (segmented), OZU-EB-362/12 255mm, OZU-ZN-362/1 515mm, OZU-ZN-362/2 550mm (segmented), OZU-ZN-362/3 200mm (segmented), OZU-362 1x:20mm, OZU-362 1x:25mm
Weight8.8kg, 9.4kg, 3.4kg, 4.3kg, 0.3kg, 0.4kg
