OZU-352
OZU-352
or
Call 1-866-609-2672
Description

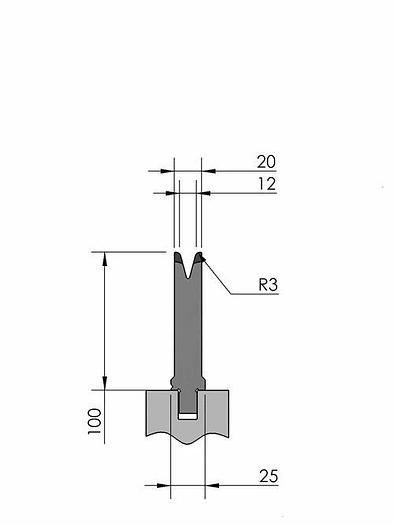

Working height = 100mm
V-opening = 12mm/30°
Radius = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 80ton/m (α = 90°)
Max. load = 80ton/m (α = 90°)
New Standard Premium bottom tool Working height=100mm, V-opening=12mm/30°, Bending radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Specifications
| Condition | New |
| Type/length | OZU-352/1 515mm, OZU-352/2 550mm (segmented), OZU-352/3 200mm (segmented), OZU-352/12 255mm, OZU-EB-352/1 515mm, OZU-EB-352/2 550mm (segmented), OZU-EB-352/3 200mm (segmented), OZU-EB-352/12 255mm, OZU-ZN-352/2 550mm (segmented), OZU-ZN-352/1 515mm, OZU-ZN-352/3 200mm (segmented), OZU-ZN-352/12 255mm, OZU-352 1x:20mm, OZU-352 1x:25mm |
| Weight | 8.5kg, 9.1kg, 3.3kg, 4.2kg, 0.3kg, 0.4kg |
