OZU-351

OZU-351

or
Call 1-866-609-2672

Description

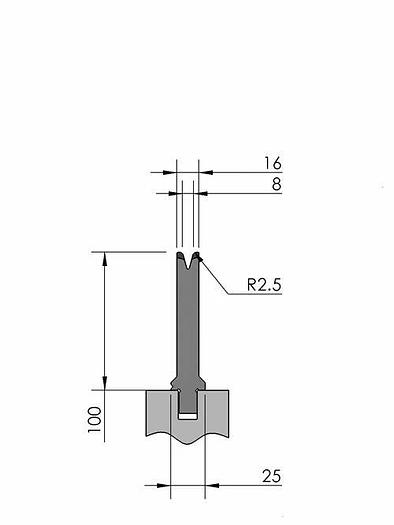

Working height = 100mm V-opening = 8mm/30° Radius = 2.5mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 80ton/m (α = 90°) Max. load = 80ton/m (α = 90°) New Standard Premium bottom tool Working height=100mm, V-opening=8mm/30°, Bending radius=2.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-351/1 515mm, OZU-351/2 550mm (segmented), OZU-351/3 200mm (segmented), OZU-351/12 255mm, OZU-EB-351/1 515mm, OZU-EB-351/2 550mm (segmented), OZU-EB-351/3 200mm (segmented), OZU-EB-351/12 255mm, OZU-ZN-351/1 515mm, OZU-ZN-351/2 550mm (segmented), OZU-ZN-351/3 200mm (segmented), OZU-351 1x:20mm, OZU-351 1x:25mm
Weight7.4kg, 7.9kg, 2.9kg, 3.6kg, 3.0kg, 0.3kg, 0.4kg
