OZU-052

OZU-052

or
Call 1-866-609-2672

Description

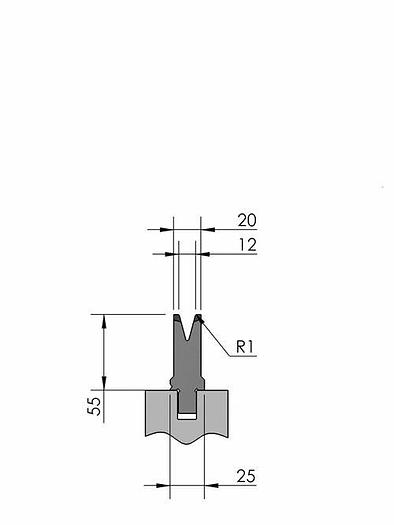

Working height = 55mm V-opening = 12mm/30° Radius = 1mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 80ton/m (α = 90°) Max. load = 80ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=12mm/30°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-052/1 515mm, OZU-052/2 550mm (segmented), OZU-052/3 200mm (segmented), OZU-052/12 255mm, OZU-EB-052/1 515mm, OZU-EB-052/2 550mm (segmented), OZU-EB-052/3 200mm (segmented), OZU-EB-052/12 255mm, OZU-ZN-052/2 550mm (segmented), OZU-ZN-052/1 515mm, OZU-ZN-052/3 200mm (segmented), OZU-052 1x:20mm, OZU-052 1x:25mm
Weight4.9kg, 5.3kg, 1.9kg, 2.4kg, 0.2kg
