OZU-063

OZU-063

or
Call 1-866-609-2672

Description

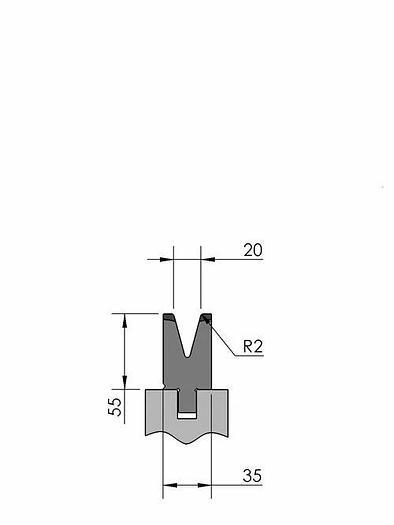

Working height = 55mm V-opening = 20mm/30° Radius = 2mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 80ton/m (α = 90°) Max. load = 80ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=20mm/30°, Bending radius=2mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-063/1 515mm, OZU-063/2 550mm (segmented), OZU-063/3 200mm (segmented), OZU-063/12 255mm, OZU-EB-063/1 515mm, OZU-EB-063/2 550mm (segmented), OZU-EB-063/3 200mm (segmented), OZU-EB-063/12 255mm, OZU-ZN-063/1 515mm, OZU-ZN-063/2 550mm (segmented), OZU-ZN-063/3 200mm (segmented), OZU-063 1x:20mm, OZU-063 1x:25mm
Weight7.2kg, 7.6kg, 2.8kg, 3.5kg, 8.3kg, 3.0kg, 0.3kg
