OZU-051
OZU-051
or
Call 1-866-609-2672
Description

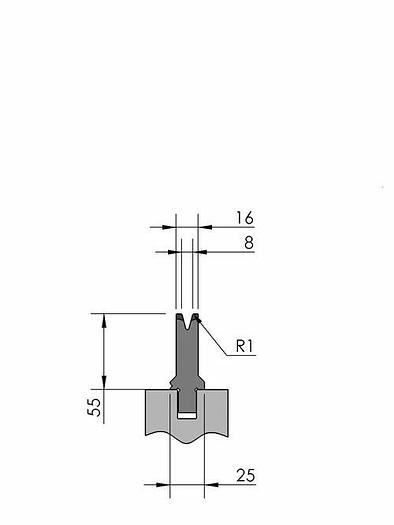

Working height = 55mm
V-opening = 8mm/30°
Radius = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 80ton/m (α = 90°)
Max. load = 80ton/m (α = 90°)
New Standard Premium bottom tool Working height=55mm, V-opening=8mm/30°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Specifications
| Condition | New |
| Type/length | OZU-051/1 515mm, OZU-051/2 550mm (segmented), OZU-051/3 200mm (segmented), OZU-051/6 200mm, OZU-051/12 255mm, OZU-EB-051/1 515mm, OZU-EB-051/2 550mm (segmented), OZU-EB-051/3 200mm (segmented), OZU-EB-051/12 255mm, OZU-ZN-051/1 515mm, OZU-ZN-051/2 550mm (segmented), OZU-ZN-051/3 200mm (segmented), OZU-ZN-051/6 200mm, OZU-051 1x:20mm, OZU-051 1x:25mm |
| Weight | 4.5kg, 4.8kg, 1.7kg, 2.2kg, 4.4kg, 4.7kg, 1.9kg, 0.2kg |
