OZU-062

OZU-062

or
Call 1-866-609-2672

Description

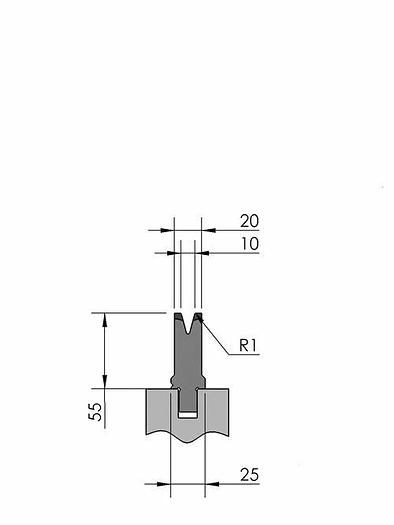

Working height = 55mm V-opening = 10mm/30° Radius = 1mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 80ton/m (α = 90°) Max. load = 80ton/m (α = 90°) New Standard Premium bottom tool Working height=55mm, V-opening=10mm/30°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)
Show All

Specifications

ConditionNew
Type/lengthOZU-062/1 515mm, OZU-062/2 550mm (segmented), OZU-062/3 200mm (segmented), OZU-062/12 255mm, OZU-EB-062/1 515mm, OZU-EB-062/2 550mm (segmented), OZU-EB-062/3 200mm (segmented), OZU-EB-062/12 255mm, OZU-ZN-062/1 515mm, OZU-ZN-062/2 550mm (segmented), OZU-ZN-062/3 200mm (segmented), OZU-062 1x:20mm, OZU-062 1x:25mm
Weight5.1kg, 5.4kg, 2.0kg, 2.5kg, 2.1kg, 0.2kg
