BIU-036
BIU-036
or
Call 1-866-609-2672

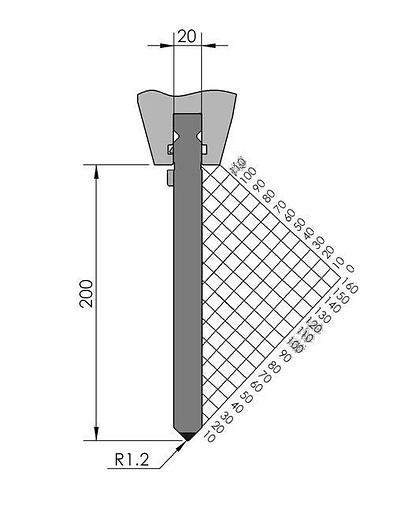

Description
Working height H = 200mm
Tip angle α = 90°
Radius R = 1.2mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 100ton/m
New Standard Premium top tool with Working height H=200mm, α=90°, Radius=1.2mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-036/1 515mm, BIU-036/2 550mm (segmented), BIU-036/3 200mm (segmented), BIU-036/11 200mm (segmented), BIU-E2M-036/1 515mm, BIU-036/12 255mm, BIU-036 1x:20mm, BIU-036 1x:25mm |
| Safety | Safety pins, Safety-Clicks®, E2M® |
| Weight | 19.1kg, 20.4kg, 7.4kg, 9.4kg, 0.7kg, 0.9kg |
