BIU-235
BIU-235
or
Call 1-866-609-2672

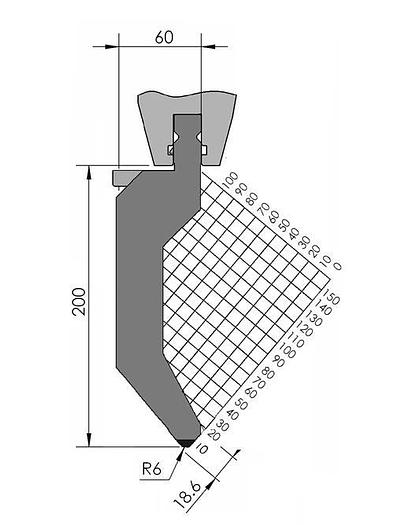

Description
Working height H = 200mm
Tip angle α = 80°
Radius R = 6mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 130ton/m
New Standard Premium top tool with Working height H=200mm, α=80°, Radius=6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=130ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety keys, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-235/1 515mm, BIU-235/2 550mm (segmented), BIU-235/3 200mm (segmented), BIU-235/11 200mm (segmented), BIU-E2M-235/1 515mm, BIU-235/12 255mm, BIU-235 1x:20mm, BIU-235 1x:25mm |
| Safety | Safety pins, Safety-Clicks®, E2M® |
| Weight | 31.9kg, 34.1kg, 12.4kg, 15.8kg, 1.2kg, 1.6kg |
