Description

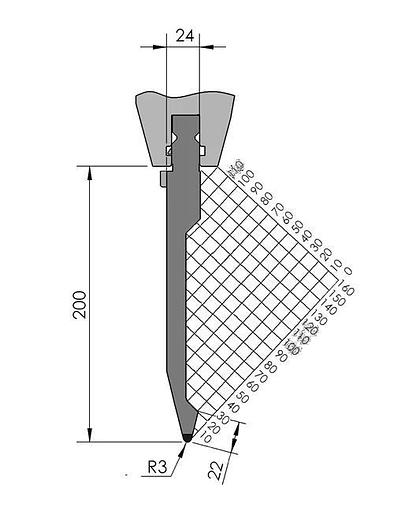

Working height H = 200mm
Tip angle α = 28°
Radius R = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 100ton/m
New Standard Premium top tool with Working height H=200mm, α=28°, Radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-231/1 515mm, BIU-231/2 550mm (segmented), BIU-231/3 200mm (segmented), BIU-231/11 200mm (segmented), BIU-E2M-231/1 515mm, BIU-231/12 255mm, BIU-231 1x:20mm, BIU-231 1x:25mm |
| Safety | Safety pins, Safety-Clicks®, E2M® |
| Weight | 15.2kg, 16.2kg, 5.9kg, 7.5kg, 0.6kg, 0.7kg |
