OB-I-HC/ES IV
OB-I-HC/ES IV
or
Call 1-866-609-2672
Description
Clamping Type = Hydraulic
Adaption = tang

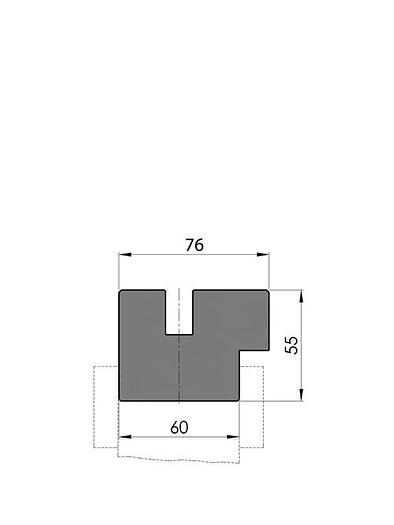

Working height H = 55mm
Width W = 76mm
Max. load = 200ton/m
Custom Style New Standard Pro bottom tool holder, Working height=55mm, Width=76mm, provided with Amada adaptation Width=60.00mm, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Material=C45 not hardened, weight: 26kg/m, max.load: 200ton/m.Delivery without hydraulic power pack.
Specifications
| Condition | New |
| Type/length | OB-I-HC/ES IV-1020, OB-I-HC/ES IV-1190, OB-I-HC/ES IV-1275, OB-I-HC/ES IV-1530, OB-I-HC/ES IV-1785, OB-I-HC/ES IV-2040, OB-I-HC/ES IV-2380, OB-I-HC/ES IV-2550, OB-I-HC/ES IV-3060, OB-I-HC/ES IV-3230, OB-I-HC/ES IV-3655, OB-I-HC/ES IV-4080, OB-I-HC/ES IV-4250 |
| Weight | 27.3kg, 31.9kg, 34.2kg, 41.0kg, 46.4kg, 54.7kg, 61.9kg, 68.3kg, 82.0kg, 86.6kg, 95.0kg, 109.3kg, 113.9kg |
