OB-I-MC-TY/ES IV

OB-I-MC-TY/ES IV

or
Call 1-866-609-2672

Description

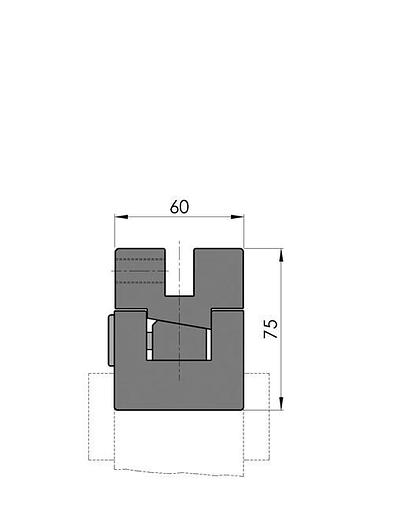

Clamping Type = Mechanical Adaption = tang Vertical Alignment (Ty) Working height H = 75mm Width W = 60mm Custom Style New Standard Pro bottom tool holder, Working height=75mm, Width=60mm, provided with Amada adaptation Width=60.00mm, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25.50mm, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened.
Show All

Specifications

ConditionNew
Type/lengthOB-I-MC-Ty/ES IV-1190, OB-I-MC-Ty/ES IV-1530, OB-I-MC-Ty/ES IV-1785, OB-I-MC-Ty/ES IV-2040, OB-I-MC-Ty/ES IV-2380, OB-I-MC-Ty/ES IV-2550, OB-I-MC-Ty/ES IV-3060, OB-I-MC-Ty/ES IV-3655, OB-I-MC-Ty/ES IV-4080, OB-I-MC-Ty/ES IV-4250
