OB-I-HC-TY/ES IV
OB-I-HC-TY/ES IV
or
Call 1-866-609-2672
Description
Clamping Type = Hydraulic
Adaption = tang
Vertical Alignment (Ty)
Working height H = 75mm
Width W = 76mm
Max. load = 200ton/m

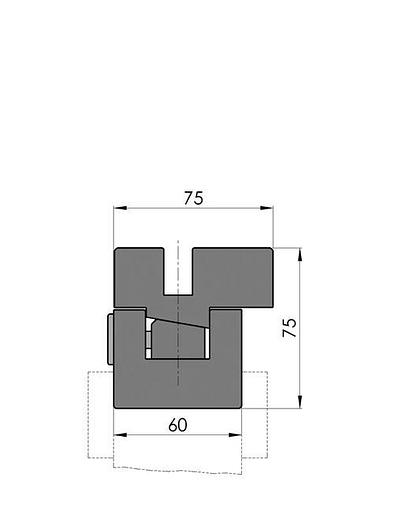

Custom Style New Standard Pro bottom tool holder, Working height=75mm, Width=76mm, provided with Amada adaptation Width=60.00mm, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened, weight: 33.3kg/m, max.load: 200ton/m.Delivery without hydraulic power pack.
Specifications
| Condition | New |
| Type/length | OB-I-HC-Ty/ES IV-1020, OB-I-HC-Ty/ES IV-1190, OB-I-HC-Ty/ES IV-1275, OB-I-HC-Ty/ES IV-1530, OB-I-HC-Ty/ES IV-1785, OB-I-HC-Ty/ES IV-2040, OB-I-HC-Ty/ES IV-2380, OB-I-HC-Ty/ES IV-2550, OB-I-HC-Ty/ES IV-3060, OB-I-HC-Ty/ES IV-3655, OB-I-HC-Ty/ES IV-4080, OB-I-HC-Ty/ES IV-4250, OB-I-HC-Ty/ES IV-4420, OB-I-HC-Ty/ES IV-4590, OB-I-HC-Ty/ES IV-5100, OB-I-HC-Ty/ES IV-6120 |
| Weight | 38.3kg, 44.6kg, 47.8kg, 57.4kg, 59.4kg, 76.5kg, 79.3kg, 95.6kg, 114.8kg, 121.7kg, 153.0kg, 159.4kg, 147.2kg, 152.8kg, 191.3kg, 229.5kg |
