Description

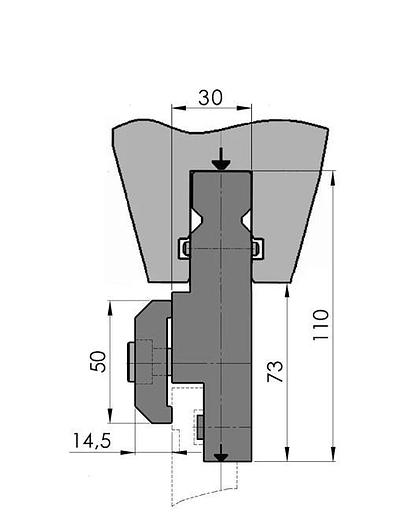

Working height = 73mm
Width W = 49.5mm
Material = C45, not hardened
Max. load = 100ton/m
Delivery with clamping plate TK-034
Safety: Parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
New Standard adapter/extenderWorking height=73mm, Width=49.5mm, Material=C45, not hardened, Weight: 24.5kg/m, Max. load=100ton/m.Delivery with: clamping plate TK-034.Safety: Parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
Condition | New |
Type/length | TSU-027/1 515mm, TSU-027/4 150mm, TSU-E2M-027/1 515mm |
Safety | Safety pins, E2M® |
Weight | 24.5kg/m |
Weight | 24.5kg/m |
