Description

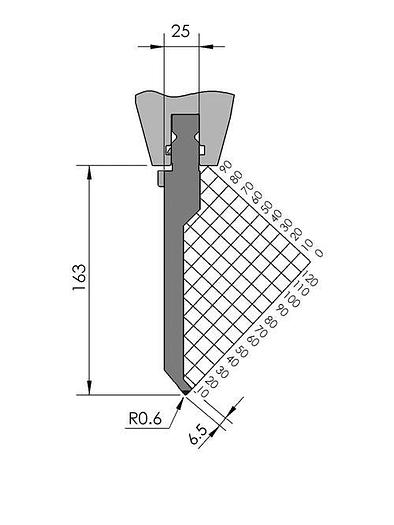

Working height H = 163mm
Tip angle α = 86°
Radius R = 0.6mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 45ton/m
New Standard Premium top tool with Working height H=163mm, α=86°, Radius=0.6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=45ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
Specifications
| Condition | New |
| Type/length | BIU-224/1 515mm, BIU-224/2 550mm (segmented), BIU-224/3 200mm (segmented), BIU-224/11 200mm (segmented), BIU-224/12 255mm, BIU-224 1x:20mm, BIU-224 1x:25mm |
| Safety | Safety-Clicks® |
| Weight | 12.2kg, 13.0kg, 4.7kg, 6.0kg, 0.5kg, 0.6kg |
