BIU-025
BIU-025
or
Call 1-866-609-2672

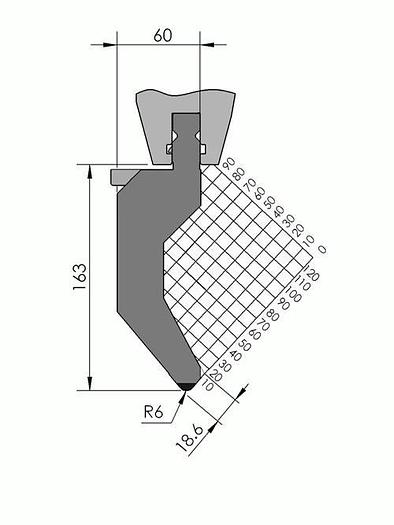

Description
Working height H = 163mm
Tip angle α = 80°
Radius R = 6mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 130ton/m
New Standard Premium top tool with Working height H=163mm, α=80°, Radius=6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=130ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety keys, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-025/1 515mm, BIU-025/2 550mm (segmented), BIU-025/3 200mm (segmented), BIU-025/11 200mm (segmented), BIU-E2M-025/1 515mm, BIU-025/12 255mm, BIU-025 1x:20mm, BIU-025 1x:25mm |
| Safety | Safety pins, Safety-Clicks®, E2M® |
| Weight | 27.2kg, 29.1kg, 10.6kg, 13.5kg, 1.1kg, 1.3kg |
