BIU-225
BIU-225
or
Call 1-866-609-2672

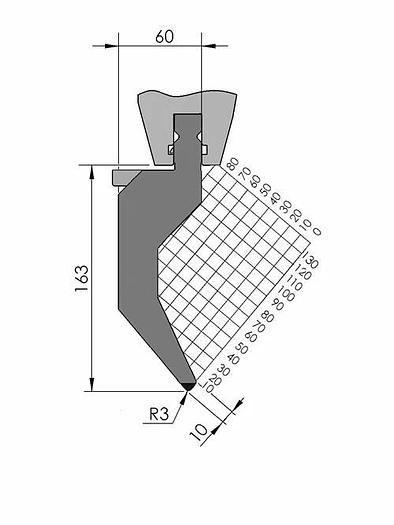

Description
Working height H = 163mm
Tip angle α = 80°
Radius R = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 90ton/m
New Standard Premium top tool with Working height H=163mm, α=80°, Radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=90ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-225/1 515mm, BIU-225/2 550mm (segmented), BIU-225/3 200mm (segmented), BIU-225/11 200mm (segmented), BIU-E2M-225/1 515mm, BIU-225/12 255mm, BIU-225 1x:20mm, BIU-225 1x:25mm |
| Safety | Safety pins, Safety-Clicks®, E2M® |
| Weight | 24.6kg, 26.2kg, 9.5kg, 12.2kg, 1.0kg, 1.2kg |
