BIU-226
BIU-226
or
Call 1-866-609-2672

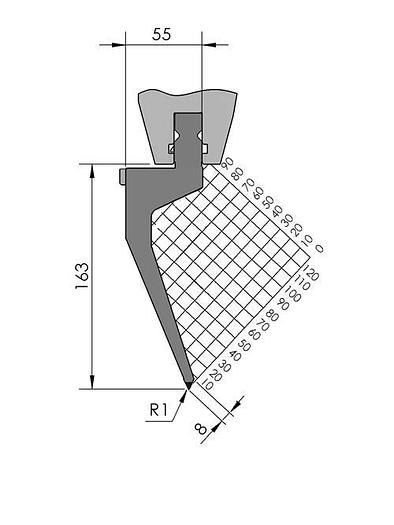

Description
Working height H = 163mm
Tip angle α = 45°
Radius R = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 40ton/m
New Standard Premium top tool with Working height H=163mm, α=45°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=40ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-226/1 515mm, BIU-226/2 550mm (segmented), BIU-226/3 200mm (segmented), BIU-E2M-226/1 515mm, BIU-226/12 255mm, BIU-226 1x:20mm, BIU-226 1x:25mm |
| Safety | Safety pins, Safety-Clicks®, E2M® |
| Weight | 15.2kg, 16.2kg, 5.9kg, 7.5kg, 0.6kg, 0.7kg |
