OB-II-HC-TY/ES IV

OB-II-HC-TY/ES IV

or
Call 1-866-609-2672

Description

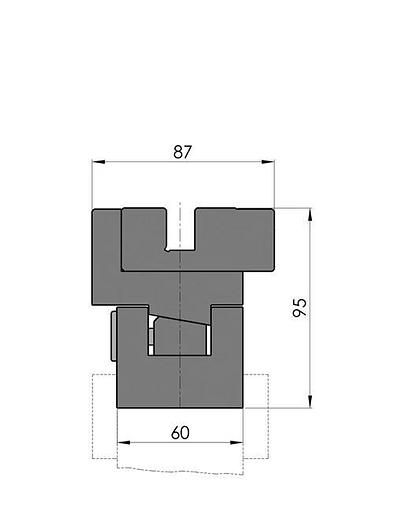

Clamping Type = Hydraulic Adaption = tang Vertical Alignment (Ty) Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 95mm Width W = 87mm Max. load = 300ton/m Custom Style New Standard Premium bottom tool holder, Working height=95mm, Width=87mm, provided with Amada adaptation Width=60.00mm, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Ty-alignment (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 46.7kg/m, max.load: 300ton/m.hardenend Delivery without hydraulic power pack.
Show All

Specifications

ConditionNew
Type/lengthOB-II-HC-Ty/ES IV-1020, OB-II-HC-Ty/ES IV-1190, OB-II-HC-Ty/ES IV-1275, OB-II-HC-Ty/ES IV-1530, OB-II-HC-Ty/ES IV-2040, OB-II-HC-Ty/ES IV-1785, OB-II-HC-Ty/ES IV-2380, OB-II-HC-Ty/ES IV-2550, OB-II-HC-Ty/ES IV-3060, OB-II-HC-Ty/ES IV-3655, OB-II-HC-Ty/ES IV-4080, OB-II-HC-Ty/ES IV-4250, OB-II-HC-Ty/ES IV-4590, OB-II-HC-Ty/ES IV-5100, OB-II-HC-Ty/ES IV-6120
Weight47.6kg, 55.6kg, 59.5kg, 71.5kg, 95.3kg, 83.4kg, 111.1kg, 119.1kg, 142.9kg, 170.7kg, 190.5kg, 198.5kg, 214.4kg, 238.2kg, 285.8kg
