NSCR-I-HC-CNC/UPB

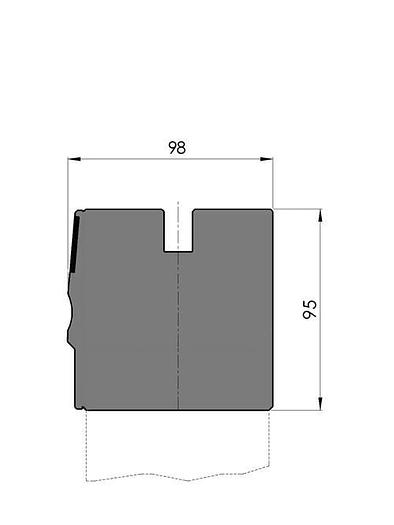

Clamping Type = Hydraulic Adaption = UPB hole pattern Vertical Alignment (Ty) Horizontal Alignment (Tx) Working height H = 95mm Width W = 98mm Max. load = 200ton/m New Standard Pro Crowning, Working height=95mm, Width=98mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear. Crowning: CRM14-I motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment behind the cover strip (manually by means of single point adjustment), Material=C45 not hardened, weight: 66kg/m, max.load: 200ton/m.Delivery with coverstrip and scale (front side, metric, "0" at the left). Delivery without hydraulic power pack and guards and mounting hardware.
