NSCR-II-HC-CNC/UPB

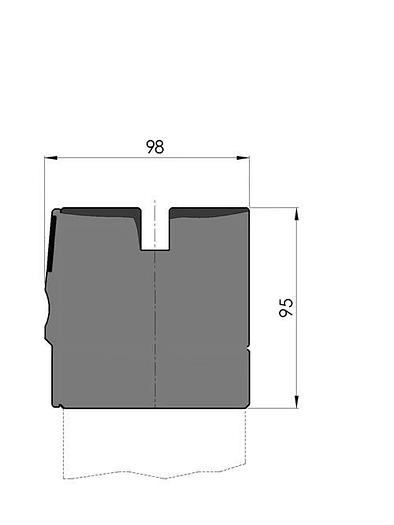

Clamping Type = Hydraulic Adaption = UPB hole pattern Vertical Alignment (Ty) Horizontal Alignment (Tx) Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC) Working height H = 95mm Width W = 98mm Max. load = 300ton/m New Standard Premium Crowning, Working height=95mm, Width=98mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left and right-bottom. Crowning: CRM12 motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment on the cover strip (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 66kg/m, max.load: 300ton/m.Delivery with coverstrip, hardenend guards and scale (front side, metric, "0" at the left). Delivery without hydraulic power pack.
