NSCR-HD-II-HC-150-CNC/UPB

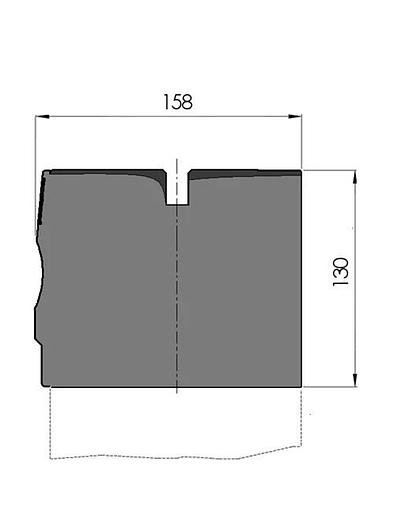

Clamping Type = Hydraulic Adaption = UPB-VI Vertical Alignment (Ty) Working height H = 130mm Width W = 150mm Max. load = 800ton/m New Standard Premium CrowningUPB-VI, , Working height=130mm, Width=150mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 0377026, hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear. Crowning: CRM12 motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment behind the cover strip (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 154kg/m, max.load: 800ton/m.Delivery with coverstrip, hardenend guards and scale (front side, metric, "0" at the left). Delivery without hydraulic power pack.
