BIU-221
BIU-221
or
Call 1-866-609-2672
Description

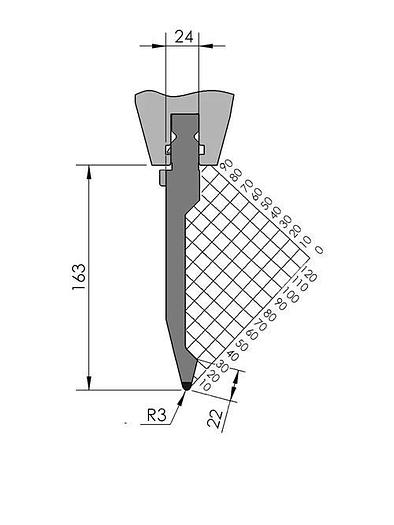

Working height H = 163mm
Tip angle α = 28°
Radius R = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 100ton/m
New Standard Premium top tool with Working height H=163mm, α=28°, Radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-221/1 515mm, BIU-221/2 550mm (segmented), BIU-221/3 200mm (segmented), BIU-221/11 200mm (segmented), BIU-221/12 255mm, BIU-221 1x:20mm, BIU-221 1x:25mm |
| Safety | Safety-Clicks® |
| Weight | 12.5kg, 13.3kg, 4.8kg, 6.2kg, 0.5kg, 0.6kg |
