DDU-001
DDU-001
or
Call 1-866-609-2672
Description

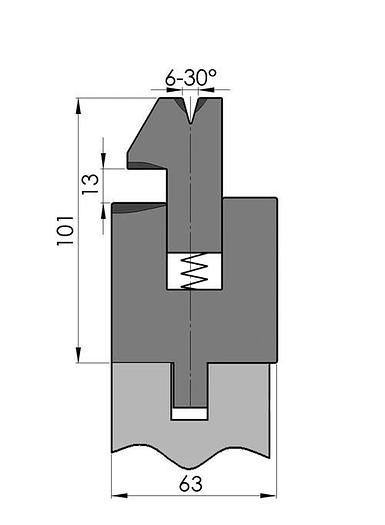

New Standard flattening tool
Working Height H
closed
= 88mm
Width W = 63mm
New Standard flattening toolHclosed=88mm, B=63mm, existing of:Flattening part (upper) provided with V=6mm/30°, Ri=1mm + flattening surface CNC-Deephardened® (at least 4mm / 56-60HRc), mat.: C45;Guide part (lower) provided with OZU-adaptation B=13.00mm, spring action, stroke=13mm, flattening surface CNC-Deephardened® (at least 4mm / 56-60HRc)weight: 37.8kg/m, max.load: 60ton/m.
Specifications
| Condition | New |
| Type/length | DDU-001/1 515mm |
| Weight | 19.5kg |
| Max.load | 60ton/m |
