DDU-004
DDU-004
or
Call 1-866-609-2672
Description
New Standard flattening tool
Working Height H
closed
= 90mm
Width W = 65mm

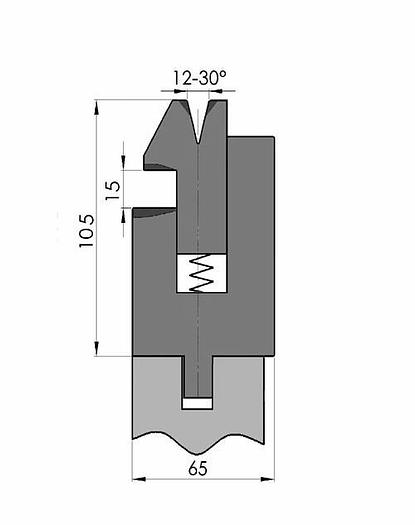

New Standard flattening toolHclosed=90mm, B=65mm, existing of:Flattening part (upper) provided with V=12mm/30°, Ri=1mm + flattening surface CNC-Deephardened® (at least 4mm / 56-60HRc), mat.: C45;Guide part (lower) provided with OZU-adaptation B=13.00mm, spring action, stroke=15mm, flattening surface CNC-Deephardened® (at least 4mm / 56-60HRc)weight: 43.8kg/m, max.load: 70ton/m.
Specifications
| Condition | New |
| Type/length | DDU-004/1 515mm |
| Weight | 22.3kg |
| Max.load | 70ton/m |
