BIU-001
BIU-001
or
Call 1-866-609-2672
Description

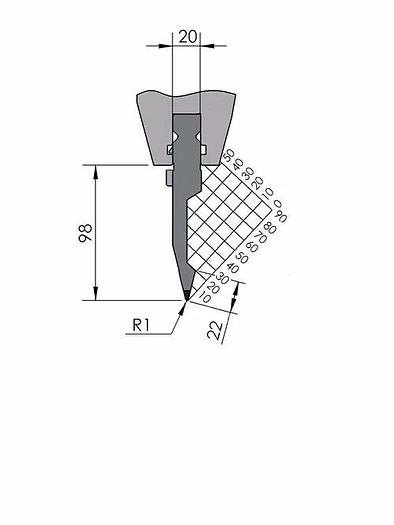

Working height H = 98mm
Tip angle α = 28°
Radius R = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 100ton/m
New Standard Premium top tool with Working height H=98mm, α=28°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
Specifications
| Condition | New |
| Type/length | BIU-001/1 515mm, BIU-001/2 550mm (segmented), BIU-001/3 200mm (segmented), BIU-001/11 200mm (segmented), BIU-001/12 255mm, BIU-001 1x:25mm, BIU-001 1x:20mm |
| Safety | Safety-Clicks® |
| Weight | 7.3kg, 7.8kg, 2.8kg, 3.6kg, 0.4kg, 0.3kg |
