BIU-016

BIU-016

or
Call 1-866-609-2672

Description

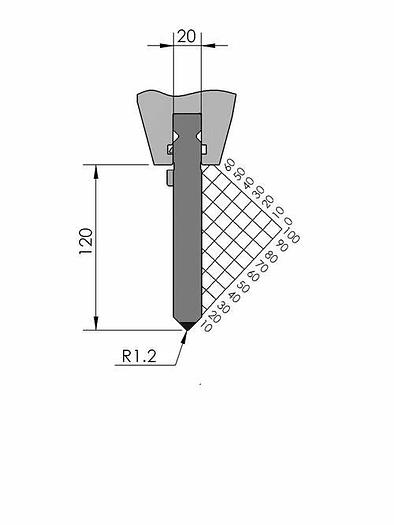

Working height H = 120mm Tip angle α = 90° Radius R = 1.2mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 100ton/m New Standard Premium top tool with Working height H=120mm, α=90°, Radius=1.2mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
Show All

Specifications

ConditionNew
Type/lengthBIU-016/1 515mm, BIU-016/2 550mm (segmented), BIU-016/3 200mm (segmented), BIU-016/11 200mm (segmented), BIU-016/12 255mm, BIU-016 1x:20mm, BIU-016 1x:25mm
SafetySafety-Clicks®
Weight12.4kg, 13.3kg, 4.8kg, 6.1kg, 0.5kg, 0.6kg

Documents
