BIU-015

BIU-015

or
Call 1-866-609-2672

Description

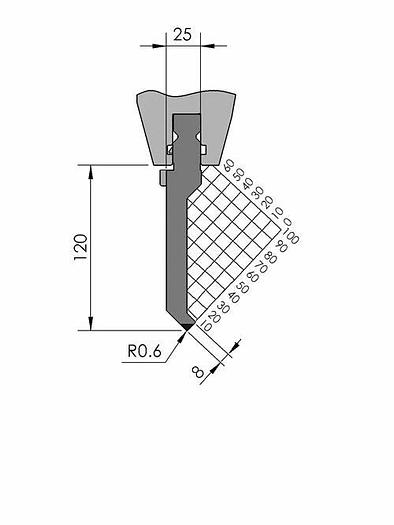

Working height H = 120mm Tip angle α = 90° Radius R = 0.6mm CNC-Deephardened® (≥ 4mm / 56-60HRC) Max. load = 60ton/m New Standard Premium top tool with Working height H=120mm, α=90°, Radius=0.6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=60ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
Show All

Specifications

ConditionNew
Type/lengthBIU-015/1 515mm, BIU-015/2 550mm (segmented), BIU-015/3 200mm (segmented), BIU-015/11 200mm (segmented), BIU-015/12 255mm, BIU-015 1x:20mm, BIU-015 1x:25mm
SafetySafety-Clicks®
Weight10.7kg, 11.4kg, 4.2kg, 5.3kg, 0.4kg, 0.5kg
