BIU-003
BIU-003
or
Call 1-866-609-2672

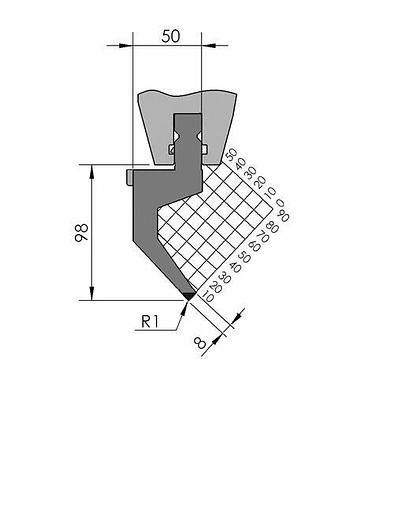

Description
Working height H = 98mm
Tip angle α = 86°
Radius R = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 65ton/m
New Standard Premium top tool with Working height H=98mm, α=86°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=65ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
Specifications
| Condition | New |
| Type/length | BIU-003/1 515mm, BIU-003/2 550mm (segmented), BIU-003/3 200mm (segmented), BIU-003/11 200mm (segmented), BIU-003/12 255mm, BIU-003 1x:25mm, BIU-003 1x:20mm |
| Safety | Safety-Clicks® |
| Weight | 11.7kg, 12.5kg, 4.5kg, 5.8kg, 0.6kg, 0.5kg |
