BIU-002
BIU-002
or
Call 1-866-609-2672
Description

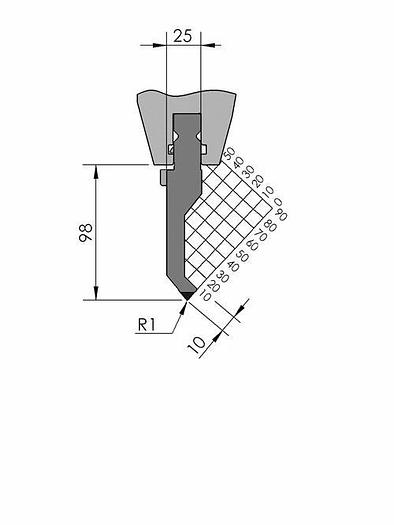

Working height H = 98mm
Tip angle α = 80°
Radius R = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 100ton/m
New Standard Premium top tool with Working height H=98mm, α=80°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=100ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
Specifications
| Condition | New |
| Type/length | BIU-002/1 515mm, BIU-002/2 550mm (segmented), BIU-002/3 200mm (segmented), BIU-002/11 200mm (segmented), BIU-002/12 255mm, BIU-002 1x:20mm, BIU-002 1x:25mm |
| Safety | Safety-Clicks® |
| Weight | 8.9kg, 9.5kg, 3.4kg, 4.4kg, 0.3kg, 0.4kg |
