BIU-013
BIU-013
or
Call 1-866-609-2672

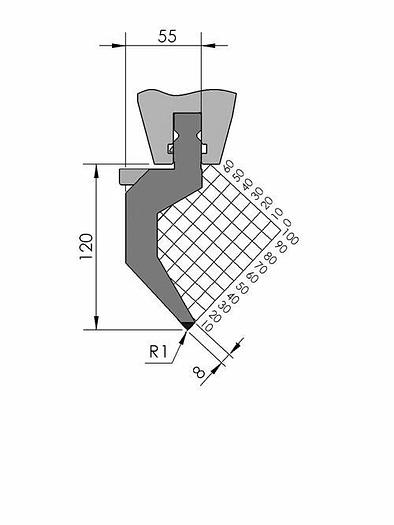

Description
Working height H = 120mm
Tip angle α = 86°
Radius R = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 65ton/m
New Standard Premium top tool with Working height H=120mm, α=86°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=65ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-013/1 515mm, BIU-013/2 550mm (segmented), BIU-013/3 200mm (segmented), BIU-013/11 200mm (segmented), BIU-013/12 255mm, BIU-E2M-013/1 515mm, BIU-013 1x:20mm, BIU-013 1x:25mm |
| Safety | Safety pins, Safety-Clicks®, E2M® |
| Weight | 15.0kg, 16.0kg, 5.8kg, 7.4kg, 0.6kg, 0.7kg |
