BIU-004
BIU-004
or
Call 1-866-609-2672

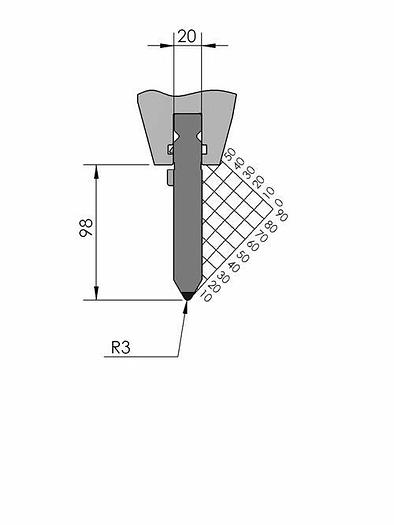

Description
Working height H = 98mm
Tip angle α = 60°
Radius R = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 160ton/m
New Standard Premium top tool with Working height H=98mm, α=60°, Radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
Specifications
| Condition | New |
| Type/length | BIU-004/1 515mm, BIU-004/2 550mm (segmented), BIU-004/3 200mm (segmented), BIU-004/11 200mm (segmented), BIU-004/12 255mm, BIU-004 1x:20mm, BIU-004 1x:25mm |
| Safety | Safety-Clicks® |
| Weight | 10.5kg, 11.2kg, 4.1kg, 5.2kg, 0.4kg, 0.5kg |
