OB-HD-I-HC/UPB

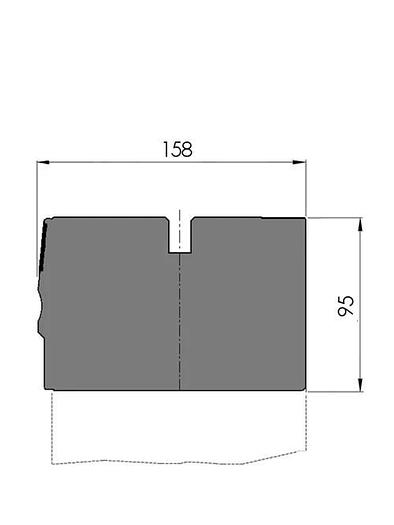

Clamping Type = Hydraulic Adaption = Customized hole pattern Working height H = 95mm Width W = 158mm Max. load = 500ton/m Custom Style New Standard Pro bottom tool holder, Working height=95mm, Width=158mm, provided with hole pattern which is suitable for the fixing holes according to your requirements , hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear, Material=C45 not hardened, weight: 112kg/m, max.load: 500ton/m.Delivery with coverstrip and scale (front side, metric, "0" at the left). Delivery without hydraulic power pack.
