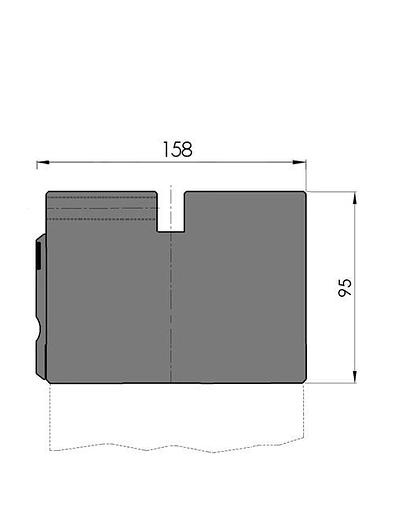

OB-HD-I-MC-TY/UPB

Clamping Type = Mechanical Adaption = UPB-VI Vertical Alignment (Ty) Working height H = 130mm Width W = 150mm Max. load = 500ton/m New Standard Pro bottom tool holderUPB-VI, , Working height=130mm, Width=150mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 0377026, mechanical clamping by means of set screws M10 pitch 100mm with centre 1000mm pitch 100mm, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened, max.load: 500ton/m.hardenend Delivery without guards and mounting hardware.
