Description

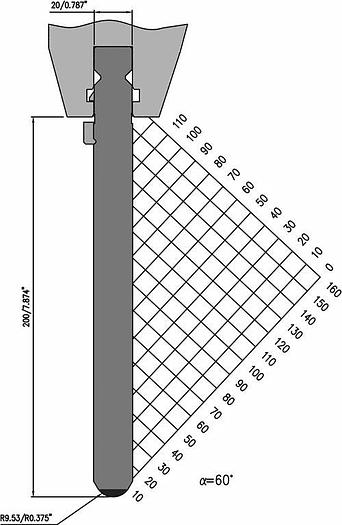

Working height H = 200mm
Tip angle α = 60°
Radius R = 9.53mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 190ton/m
New Standard Premium top tool with Working height H=200mm, α=60°, Radius=9.53mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=190ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
Specifications
| Condition | New |
| Type/length | BIU-237/1 515mm, BIU-237/2 550mm (segmented), BIU-237/3 200mm (segmented), BIU-237/12 255mm, BIU-237/11 200mm (segmented), BIU-237 1x:20mm, BIU-237 1x:25mm |
| Safety | Safety pins, Safety-Clicks® |
| Weight | 19.3kg, 20.6kg, 7.5kg, 9.5kg, 0.7kg, 0.9kg |
