OB-HD-I-HC-TY/UPB

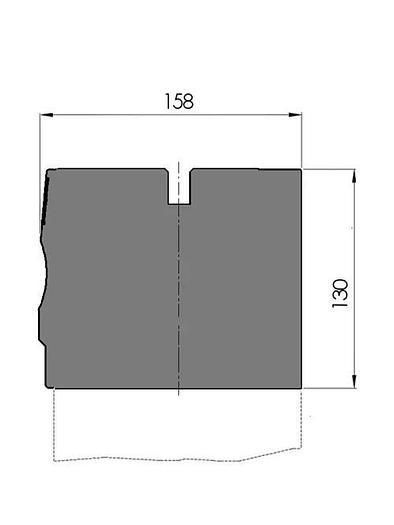

Clamping Type = Hydraulic Adaption = UPB-VI Vertical Alignment (Ty) Working height H = 130mm Width W = 158mm Max. load = 500ton/m New Standard Pro bottom tool holderUPB-VI, , Working height=130mm, Width=158mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 0377026, hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear, Tx-alignment, Ty-alignment behind the cover strip (manually by means of single point adjustment), Material=C45 not hardened, weight: 154kg/m, max.load: 500ton/m.Delivery with coverstrip, guards and scale (front side, metric, "0" at the left). Delivery without hydraulic power pack.
