OB-I-MC/ES IV

OB-I-MC/ES IV

or
Call 1-866-609-2672

Description

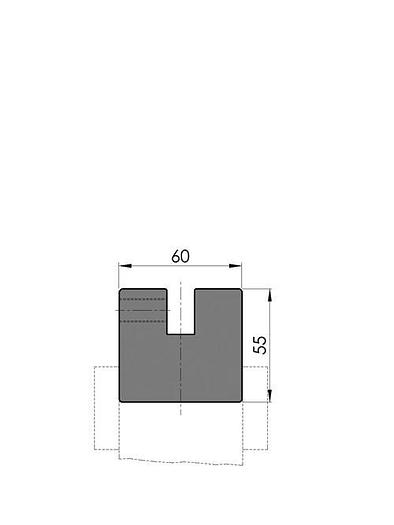

Clamping Type = Mechanical Adaption = tang Working height H = 55mm Width W = 60mm Max. load = 200ton/m Custom Style New Standard Pro bottom tool holder, Working height=55mm, Width=60mm, provided with Amada adaptation Width=60.00mm, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25.50mm, Material=C45 not hardened, max.load: 200ton/m.
Show All

Specifications

ConditionNew
Type/lengthOB-I-MC/ES IV-1785, OB-I-MC/ES IV-2040, OB-I-MC/ES IV-2550, OB-I-MC/ES IV-3060, OB-I-MC/ES IV-4080, OB-I-MC/ES IV-4250
Weight59.7kg
