OB-I-MC/UPB

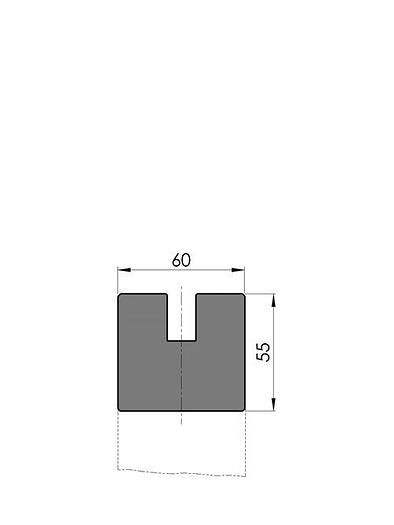

Clamping Type = Mechanical Adaption = Customized hole pattern Working height H = 55mm Width W = 60mm Max. load = 200ton/m Custom Style New Standard Pro bottom tool holder, Working height=55mm, Width=60mm, provided with hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25.50mm, Material=C45 not hardened, weight: 23.5kg/m, max.load: 200ton/m.
